All Plank Partitions
Ships by freight — Canada & the U.S.
Heavy items ship by freight across Canada and the US, quoted separately from the price above. Ask us for a quote first, or check out now and we will send your freight quote before anything ships. Pickup in Sherwood Park, AB is free. Prices are in CAD.
Ask for a freight quote →Description

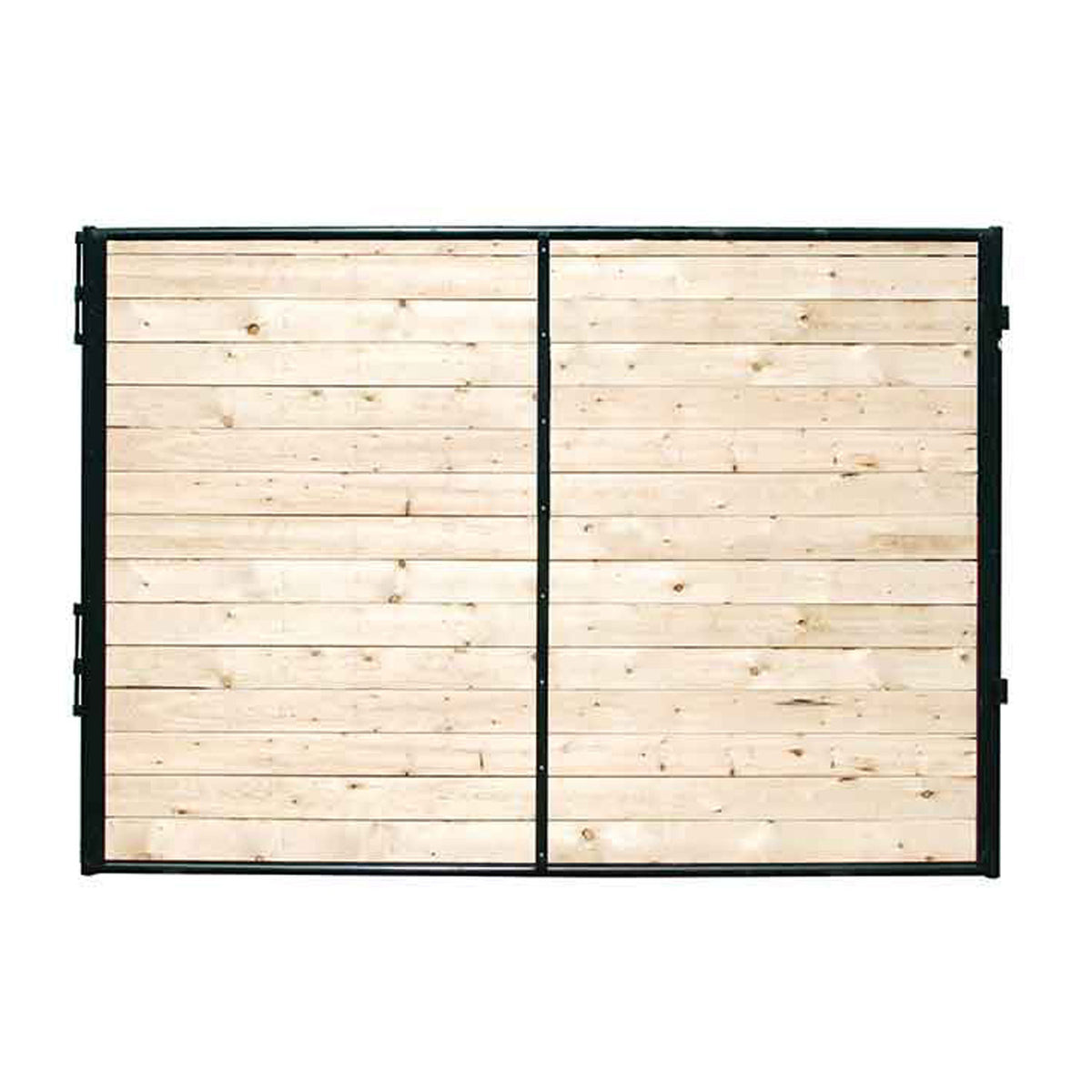

Hi-Hog All Plank partitions are the solid-wall option between stalls: a welded steel frame with channels built in for 2 × 6 planks, so the wall between two horses is solid wood on steel. They come in 10 ft and 12 ft lengths, with custom lengths on request, and every partition is 7 ft high. From $435 CAD per partition. Send us your stall layout and we will quote the whole order, freight included.
When to pick an all plank partition
Hi-Hog recommends an All Plank partition when the horses in neighbouring stalls do not get along. It is part of the Hi-Hog modular stall system, which is built for stalls that stay safe and reliable for years: solid welded construction that is easy to plan and install around your barn and your budget.
Sizes and weights
| Item# | Length | Weight (lbs) |
| 4110 | 10' | 102 |
| 4112 | 12' | 123 |
What you get
- Heavy-duty 1.9 in OD, 14-gauge steel frame.
- 7 ft high, in 10 ft or 12 ft lengths. Custom lengths on request.
- Channels in the frame take 2 × 6 planed dimensional lumber.
- Pins directly to Hi-Hog stall fronts.
Installation
The partition is designed for quick installation: it pins directly to the stall fronts. Slide the lumber into the channel in the frame and secure the last board in place. Lumber is not included with any Hi-Hog stall frame, so plan your boards before the partitions arrive. Tell us your proposed stall order and we will work out how much wood you need.
How to order
All Plank partitions are priced by quote. Tell us how many partitions you need, the length (10 ft, 12 ft or custom), your barn layout and your postal or ZIP code, and we reply with a written quote that includes freight. Message the barn, or call or text 780-464-0485. Pickup in Sherwood Park is free.
Partitions ship by freight, quoted to your postal or ZIP code before the order is finalized. See Shipping & freight for delivery estimates and free local pickup.
Building a new barn or adding stalls? Pair the partitions with stall flooring from Stalls & flooring, or look at the freestanding portable stall system for shows and layovers.
