All Plank Partitions
Ships by freight — Canada & the U.S.
Partitions ship by freight, quoted to your postal or ZIP code before the order is finalized. Pickup in Sherwood Park, AB is free.
Ask for a freight quote →Description

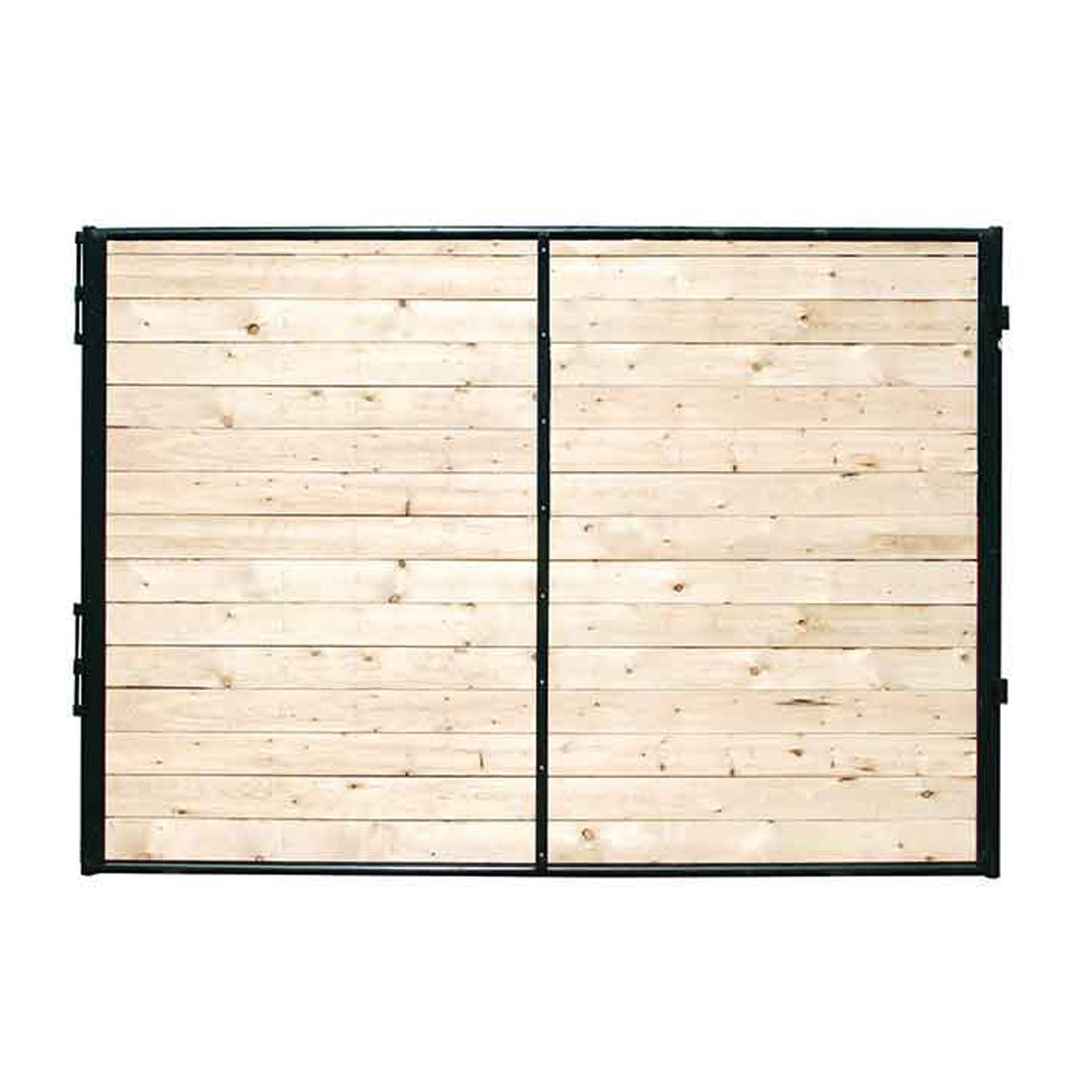

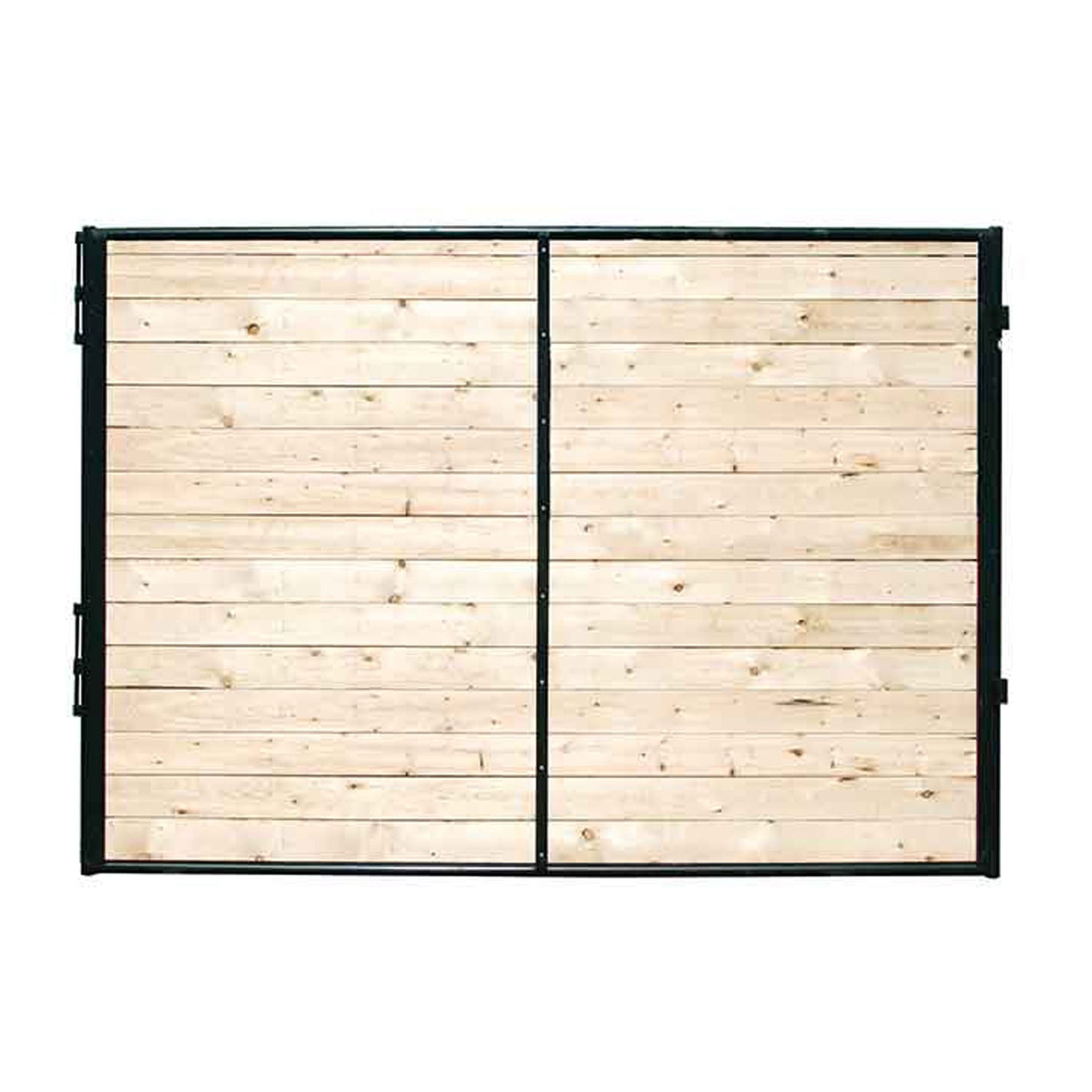

Hi-Hog All Plank partitions are the solid-wall option between stalls: a welded steel frame with channels built in for 2 × 6 planks, so the wall between two horses is solid wood on steel. They come in 10 ft and 12 ft lengths, and every partition is 7 ft high. Custom lengths are paused until 2027. From $435 per partition. Send us your stall layout and we will quote the whole order, freight included.
When to pick an all plank partition
Hi-Hog recommends an All Plank partition when the horses in neighbouring stalls do not get along. It is part of the Hi-Hog modular stall system, which is built for stalls that stay safe and reliable for years: solid welded construction that is easy to plan and install around your barn and your budget.
Sizes and weights
| Item# | Length | Weight (lbs) |
| 4110 | 10' | 94 |
| 4112 | 12' | 114 |
What you get
- Heavy-duty 1.9 in OD, 14-gauge steel frame.
- 7 ft high, in 10 ft or 12 ft lengths. Custom lengths are paused until 2027.
- Channels in the frame take 2 × 6 planed dimensional lumber.
- Pins directly to Hi-Hog stall fronts.
Installation
The partition is designed for quick installation: it pins directly to the stall fronts. Slide the lumber into the channel in the frame and secure the last board in place. Lumber is not included with any Hi-Hog stall frame, so plan your boards before the partitions arrive. Tell us your proposed stall order and we will work out how much wood you need.
How to order
All Plank partitions are priced by quote. Tell us how many partitions you need, the length (10 ft or 12 ft), your barn layout and your postal or ZIP code, and we reply with a written quote that includes freight. Message the barn, or call or text 780-464-0485. Pickup in Sherwood Park is free.
Partitions ship by freight, quoted to your postal or ZIP code before the order is finalized. See Shipping & freight for delivery estimates and free local pickup.
Building a new barn or adding stalls? Pair the partitions with stall flooring from Stalls & flooring, or look at the freestanding portable stall system for shows and layovers.
Frequently Asked Questions
Why it's built different
The wall between two stalls has one job. Here is how this one does it.
Solid wood on steel
Planks slide into channels built into the welded frame, so the wall between two horses is solid from top to bottom.
Made for bad neighbours
Hi-Hog recommends the All Plank partition when the horses on either side do not get along.
Part of a system
It pins straight to Hi-Hog stall fronts, so you can plan the barn around your layout and your budget.
Quick to put up
Pin the frame to the stall fronts, slide the lumber in, and secure the last board.
